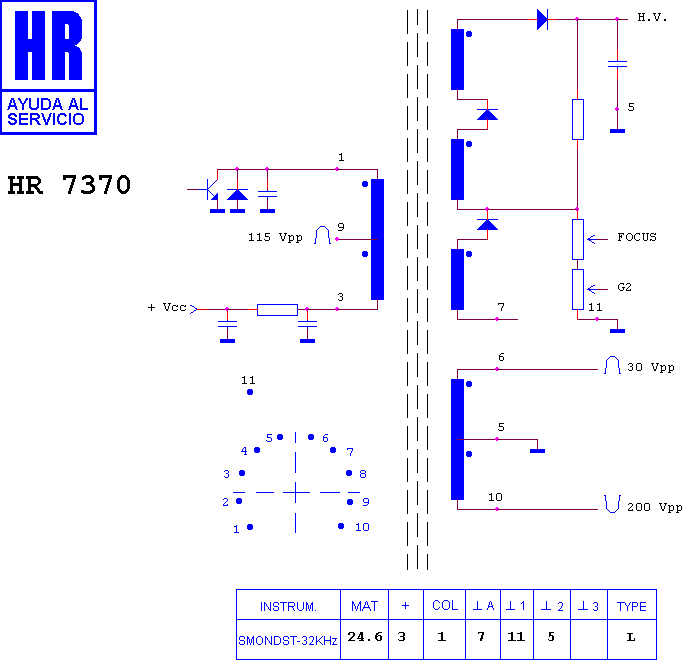

HR 7370

type SM · family 1ACP · 24.6 kV maximum anode voltage · L° deflection · 3 windings · 434 g

Manufacturer equivalents (3)

1242.0178 · 28029390 · FAT 30748

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6580 · HR 7929 · HR 46170 · HR 8385 · HR 7775 · HR 7780 · HR 7443 · HR 7295 · HR 7842

Fitted to (11)

HANTAREX MONITOR · HANTAREX POLO 25" 31 KHZ · HANTAREX POLO 28" · HANTAREX POLO 28" 25 KHZ · HANTAREX POLO28"15/25KHZ · HANTAREX VIDEO GAME · SAMBER'S / NUOVA SAMBER'S MONITOR · SAMBER'S / NUOVA SAMBER'S POLO 25" 31 KHZ · SAMBER'S / NUOVA SAMBER'S POLO 28" · SAMBER'S / NUOVA SAMBER'S POLO 28" 25 KHZ · SAMBER'S / NUOVA SAMBER'S VIDEO GAME
