HR 7775

type SM · family 1WP1 · 23.8 kV maximum anode voltage · L° deflection · 4 windings · 428 g

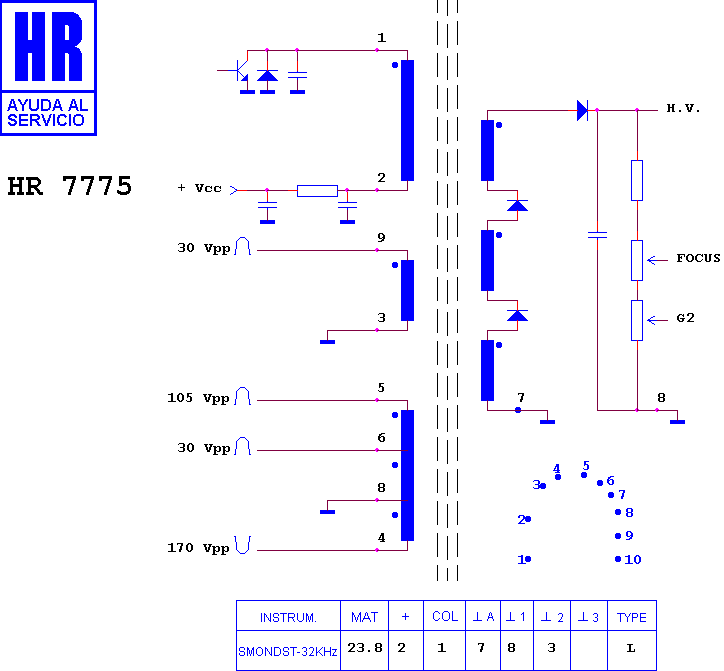

Schematic diagram for HR 7775
schematic

Manufacturer equivalents (15)

154195R · 79 A 361-2 · 79 A 361-3 · BSC 19-23561 · BSC 24-1402 · BSC 25-0202 A · BSC 26 M 02 C 1 · BSC24-1411 · FEA 181 · FEA 181 A · FEA 237 · FEA 237 A · FEA 678 · MAT 33276 · MAT 33309

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7370 · HR 7219 · HR 8796 · HR 6580 · HR 7842 · HR 7929

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (13)

A.O.C. AMS 1428 I · A.O.C. CM 323 · A.O.C. CM 335 · A.O.C. CM 335 MG · A.O.C. CM 355 · A.O.C. M 608 · A.O.C. M 616 · A.O.C. MONITOR · CONTINENTAL CT 4967 · CONTINENTAL MONITOR · ELTEC CM 335 MG · ELTEC MONITOR · ELTEC ZCM 1790
