HR 8796

25.3 kV maximum anode voltage · L° deflection · 3 windings · 434 g

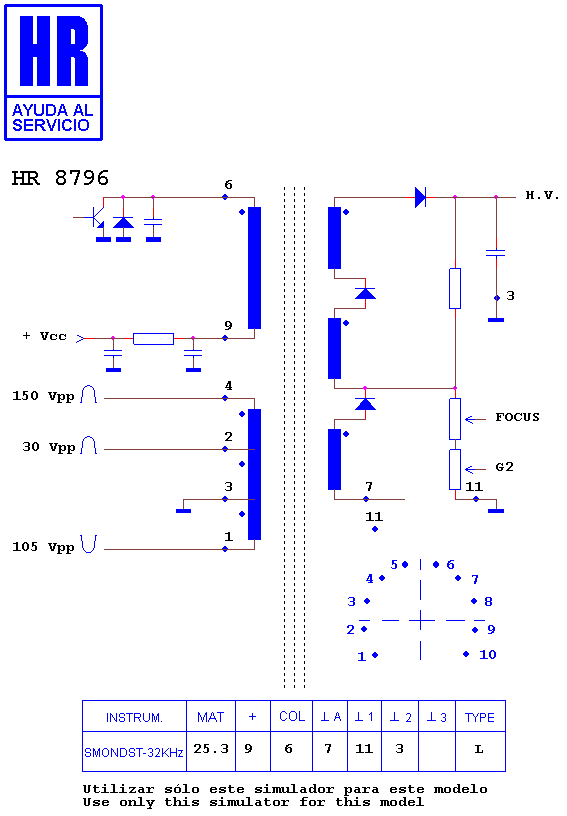

Schematic diagram for HR 8796
schematic (archived)

Manufacturer equivalents (2)

1242.0288 · 28029750

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7190 · HR 7219 · HR 7365 · HR 8697 · HR 46260 · HR 7775 · HR 8663

Fitted to (6)

OLIVETTI DSM 27-141 LE · OLIVETTI DSM 27-141 LE · OLIVETTI MONITOR · OLIVETTI MONITOR PROLINEAR NET 1/25 S · SELTI MONITOR · SELTI SL 851442010
