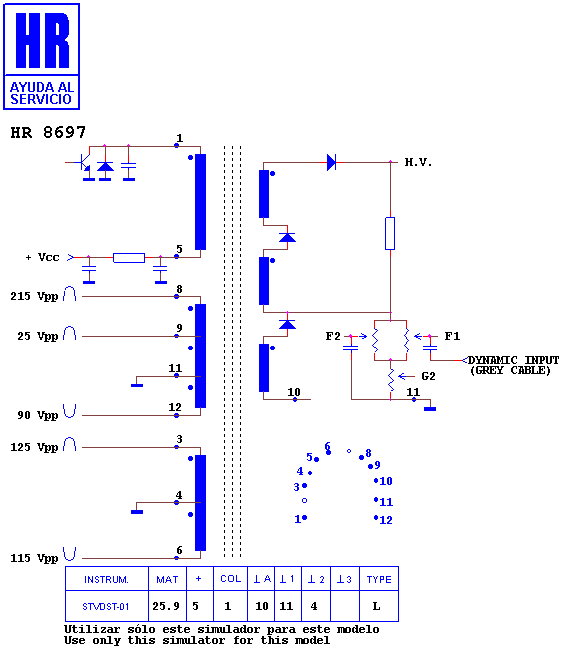

HR 8697

type SM · family 1YD · 19.4 kV maximum anode voltage · L° deflection · 4 windings · 408 g

Manufacturer equivalents (18)

003323133 · 138 21721 · 138 21722 · 1392.9006 · 1392.9006 A · 1392.9006 B · 1392.9006 D · 1392.9006 F · 308 20411 · 308 20621 · 3104 308 20411 · 3104 308 20621 · 3128 138 21721 · 3128 138 21722 · KN 35021 N · OV 2076 M-21722 · RO489 · TR489

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8751 · HR 7219 · HR 8796 · HR 7190 · HR 6383 · HR 8663 · HR 7448 · HR 46260

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16524 — Focus control

Notes

COD-031 IN THE HR TRANSFORMER; THE SCREEN CABLE IS RED.

Fitted to (9)

PHILIPS 29 PT 8606 · PHILIPS 29 PT 8606/12 · PHILIPS 29 PT 8608 · PHILIPS 29 PT 9007 · PHILIPS 29 PT 9007/12 · PHILIPS 29 PT 9007/19 · PHILIPS 29 PT 9008 · PHILIPS 29 PT 9008/12 · PHILIPS CHASIS EM 2 E AA

Search this part in the full database
