HR 7448

type SM · family 1WP1 · 23.6 kV maximum anode voltage · L° deflection · 3 windings · 459 g

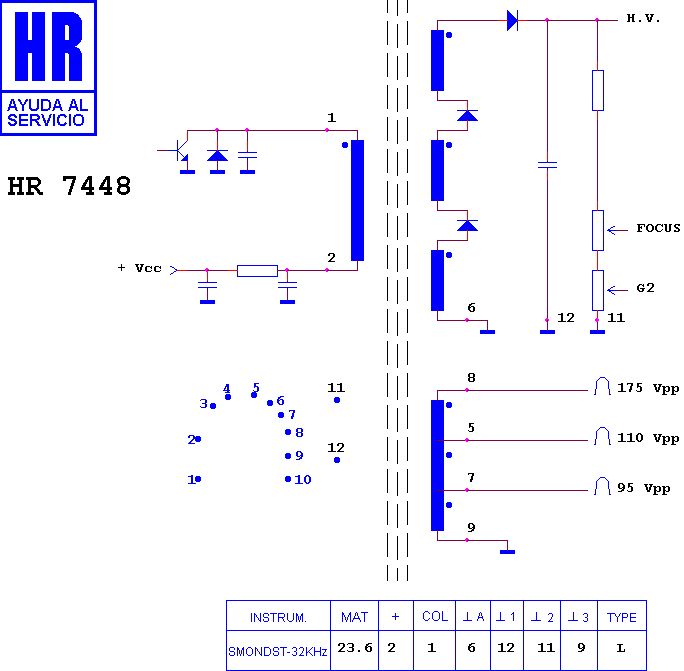

Schematic diagram for HR 7448
schematic

Manufacturer equivalents (2)

007 A 02-LT-K · BSC 22-23436

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8580 · HR 8751 · HR 7395 · HR 46260 · HR 8697

Fitted to (2)

DTK 14" · DTK COMPUTER MONITOR
