HR 8580

type SM · family 1WD · 27.5 kV maximum anode voltage · L° deflection · 4 windings · 474 g

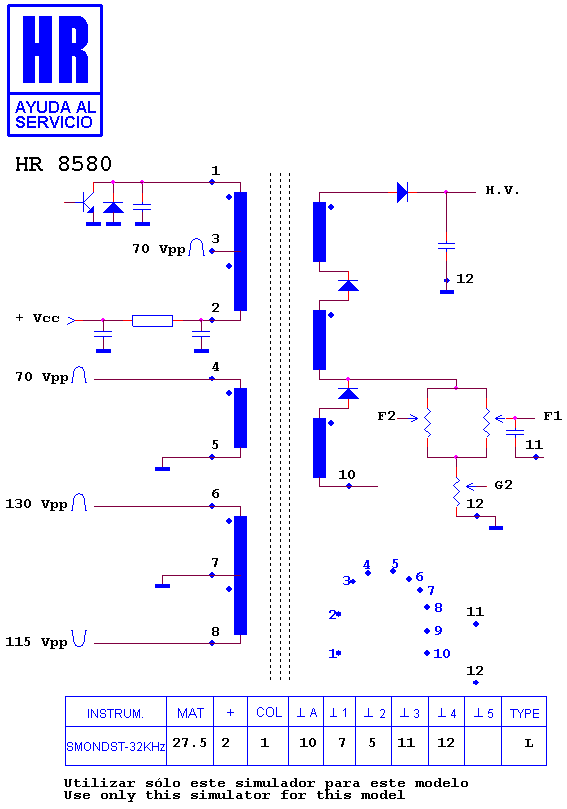

Schematic diagram for HR 8580
schematic

Manufacturer equivalents (14)

1-453-326-11 · 1-453-332-11 · 1-453-332-21 · 1-453-360-11 · 8-598-836-00 · 8-598-836-01 · 8-598-836-02 · 8-598-836-10 · NX 4601 · NX 4601/J1J4 · NX4601//M · NX4601/J114 · NX4601/J1B4 · X40363091

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7448 · HR 7190 · HR 8788 · HR 8678 · HR 8595 · HR 46260

Fitted to (1)

SONY KV ES 34 M 9 S
