HR 8595

type SM · family 1YP · 23.9 kV maximum anode voltage · L° deflection · 3 windings · 410 g

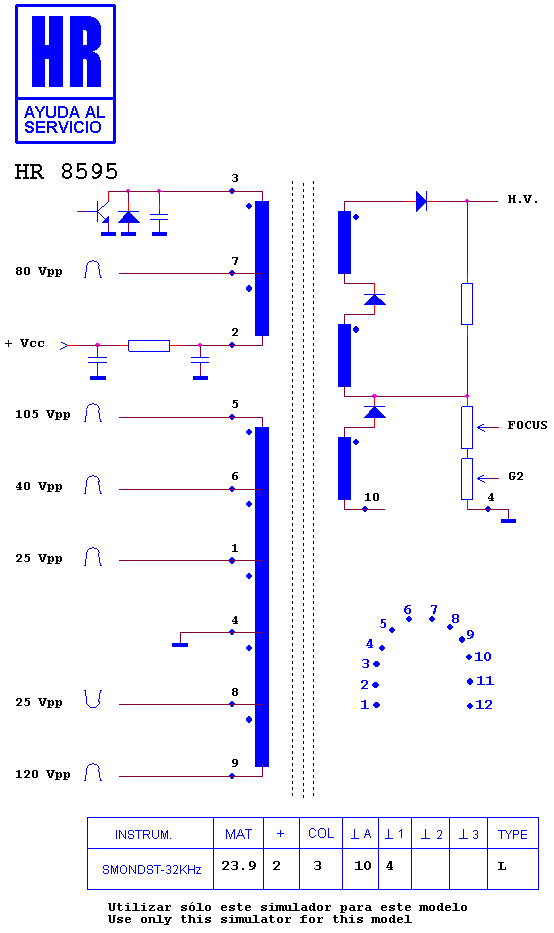

Schematic diagram for HR 8595
schematic

Manufacturer equivalents (8)

138 20461 · 26820461 · 3128 138 20461 · 822800128973 · AT 2092-20461 · CTRNF2046BMVO · F 2046 BM · RTRNF2046BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8580 · HR 8731 · HR 8425 · HR 8389

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (9)

SHARP 70 DW 15 FP · SHARP 70 DW 15 SN · SHARP 70 DW 153 N · SHARP 70 DW 155 N · SHARP 70 DW 18 SN · SHARP 70 DW 185 N · SHARP 81 DW 18 FP · SHARP CHASIS CW 100 · SHARP P 5096 B
