HR 8389

type SM · family 1VP · 23.4 kV maximum anode voltage · L° deflection · 4 windings · 374 g

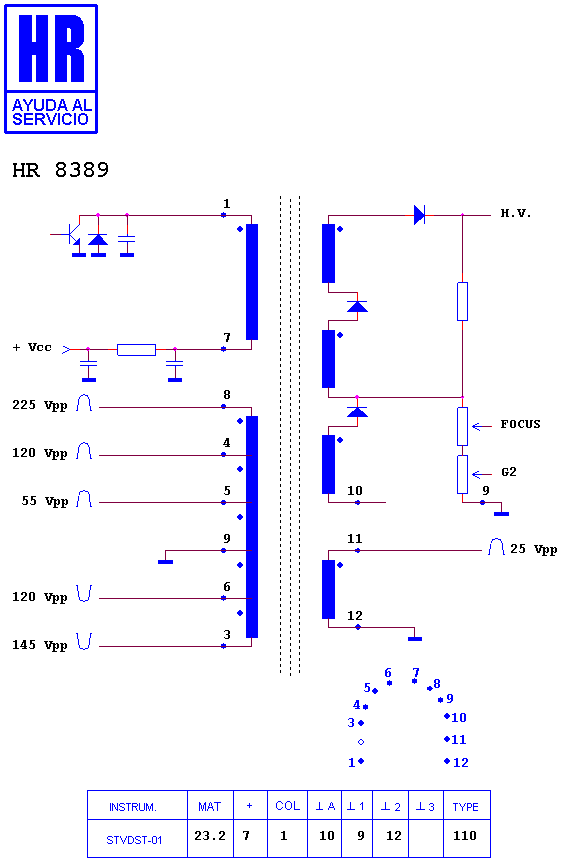

Schematic diagram for HR 8389
schematic

Manufacturer equivalents (7)

1372.0072 · 1372.0072 C · 1372.00722 · 1372.0072A · 1372.0072D · 437721 · HR 8389

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7080 · HR 8595

Search this part in the full database
