HR 8731

31.7 kV maximum anode voltage · L° deflection · 5 windings · 352 g

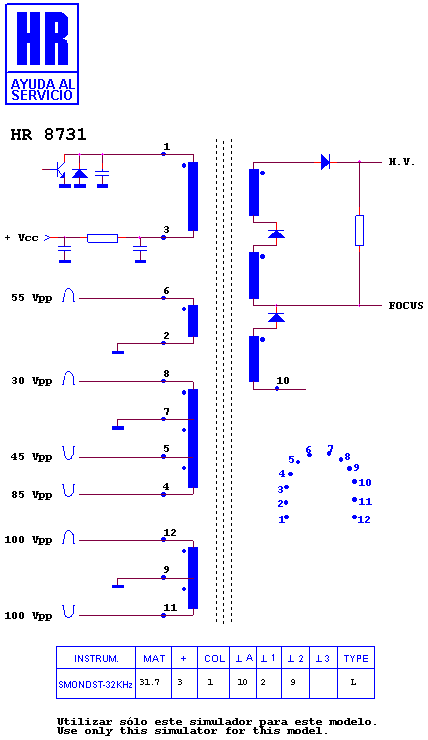

Schematic diagram for HR 8731
schematic (archived)

Manufacturer equivalents (9)

1362.6010 · 1362.6010C · 1372.6010 · 1372.60100 · 1372.60102 · 1372.60102 A · 1372.6010C · 8014196 · HR 8731

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8437 · HR 8595 · HR 6497
