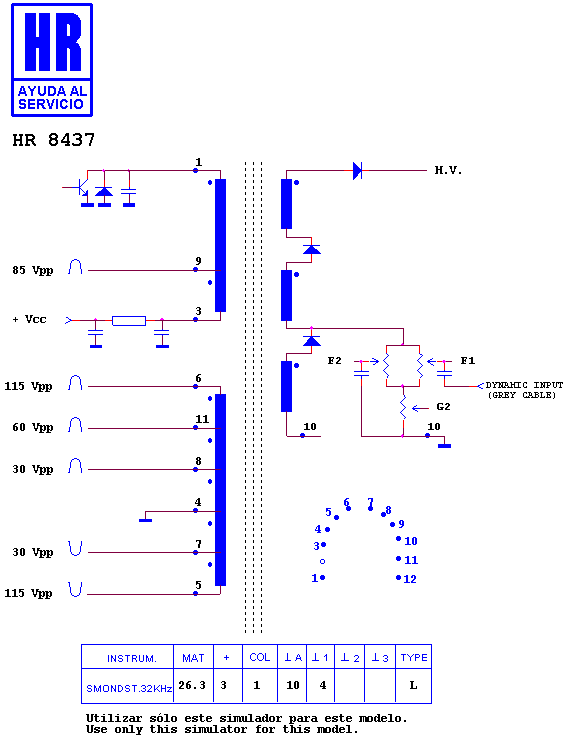

HR 8437

type SM · family 1YD · 26.3 kV maximum anode voltage · L° deflection · 3 windings · 410 g

Manufacturer equivalents (3)

AT 2091-20641 · F 2052 BM · RTRNF2052BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8731 · HR 8317 · HR 6497

Notes

COR-027 THE GREY CABLE FROM THE HR(DIN.FOCUS)MUST BE SOLDED TO PCB HOLE WHICH CORRESPONDS TO THE DIN.FOC.FROM THE ORGIN.

Fitted to (4)

SHARP 72 FF 57 E · SHARP 81 EF 19 E · SHARP 81 EF 20 E · SHARP CHASIS DA 100 W
