HR 6497

type SM · family 1BP1 · 23.2 kV maximum anode voltage · L° deflection · 3 windings · 390 g

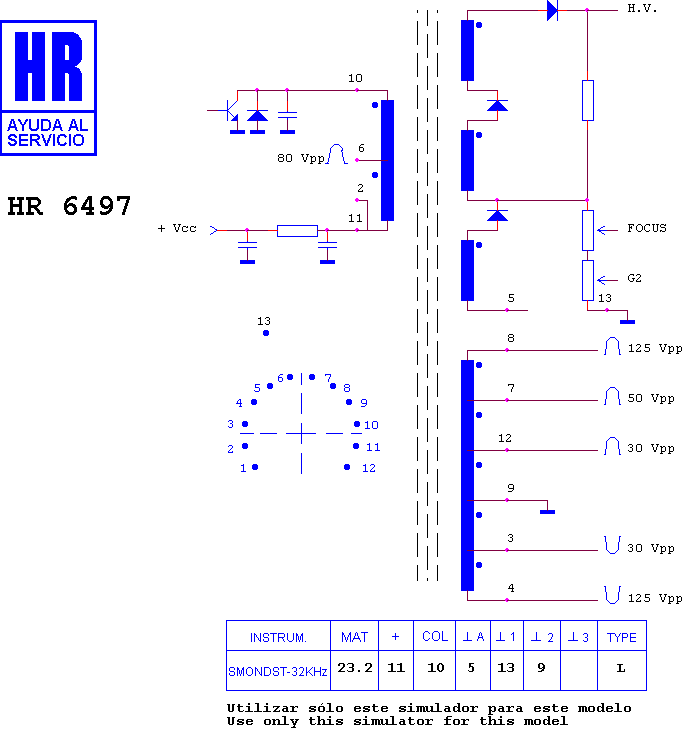

Schematic diagram for HR 6497
schematic

Manufacturer equivalents (10)

473202.24 · CTRNF2041BMV0 · CTRNF2041BMVO · F 2041 BM · F18N.0004 · F2041BMZZ · FAT30721 · HR 6497 · NF 2041 BM · RTRNF2041BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8437 · HR 8731

Fitted to (11)

SHARP 63 DS 15 S · SHARP 70 DS 15 S · SHARP 70 DS 18 S · SHARP 70 ES 14 S · SHARP 70 ES 16 S · SHARP 70 ES 18 S · SHARP 70 FS 57 S · SHARP CHASIS CA 100 · SHARP CHASIS DA 100 · SHARP CHASIS DA 100 25-29" · SHARP CHASIS DS 100 HZ

Search this part in the full database
