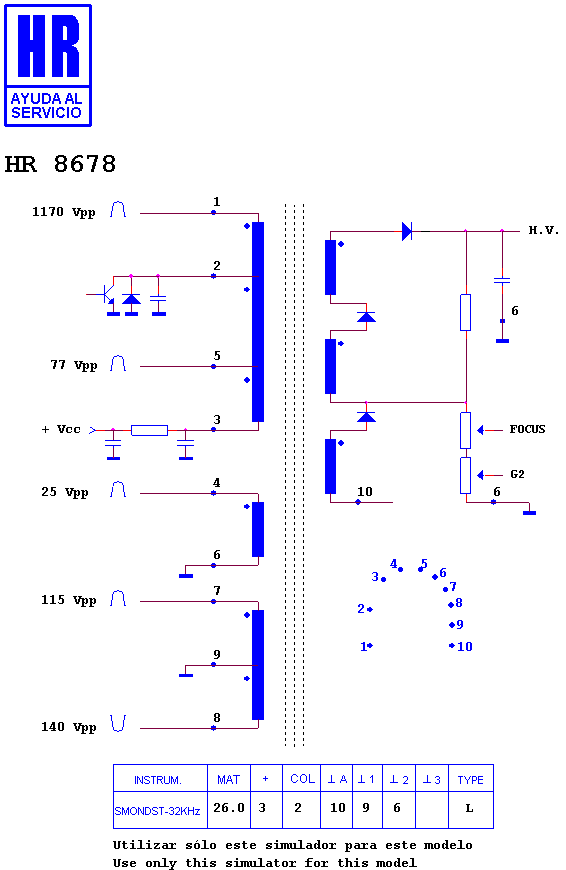

HR 8678

type SM · family 1WP1 · 26 kV maximum anode voltage · L° deflection · 4 windings · 461 g

Manufacturer equivalents (8)

1362.5071 · 1362.5071 A · AA 26-00007 A · FCZ 29 A 014 · FCZ 29 A 014 F · FCZ 29 A 014 N · FCZ 29 A 014 S · HR 8678

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Notes

COD-032 IN THE HR TRANSFORMER THE MISSED PINS ARE CONNECTED INTERNALLY. COD-034 IN THE ORIGINAL TRANSFORMER THERE ARE SOME PINS WITHOUT INTERNAL CONNECTION.

Fitted to (19)

SAMSUNG CHASIS S 53 A · SAMSUNG CHASIS SCT 53 A · SAMSUNG CW 28 C 7 · SAMSUNG CW 28 C 7 VH · SAMSUNG CW 28 C 7 VH 2 X · SAMSUNG CW 28 C 7 VH 2 X/XEC · SAMSUNG CW 28 C 7 VH 2 X/XEE · SAMSUNG CW 28 C 7 VH 2 X/XEF · SAMSUNG CW 28 C 7 VH 2 X/XEG · SAMSUNG CW 28 C 7 VH 2 X/XET · SAMSUNG CW 28 C 7 VHG · SAMSUNG CW 28 C 7 WG 8 X · SAMSUNG CW 28 C 7 WG 8 X/XEG · SAMSUNG CW 29 C 7 VH · SAMSUNG CX 28 C 7 VH 2 X · SAMSUNG CX 28 C 7 VH 2 X/XEG · SAMSUNG CX 28 C 7 VH 2 XEG · SAMSUNG WS 28 W 6 HA · SAMSUNG WS 32 W 6 HA
