HR 7957

25.6 kV maximum anode voltage · L° deflection · 4 windings · 474 g

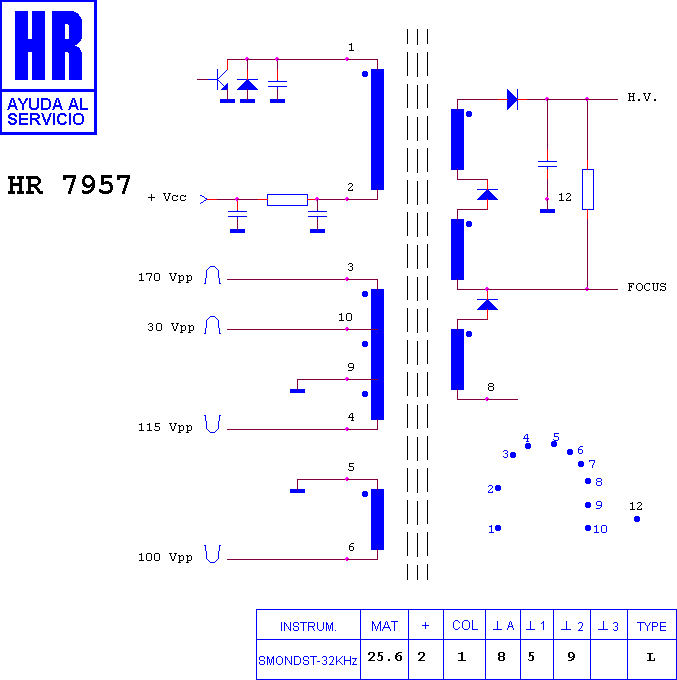

Schematic diagram for HR 7957
schematic
Schematic diagram for HR 7957
schematic (archived)

Manufacturer equivalents (1)

HR7957

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8612 · HR 7706 · HR 8678 · HR 8788 · HR 7050

Fitted to (2)

A E MONITOR INDUSTRIAL MULTISCAN · A E VGA INDUSTRIAL COLOR MONITOR
