HR 8788

29.2 kV maximum anode voltage · L° deflection · 4 windings · 410 g

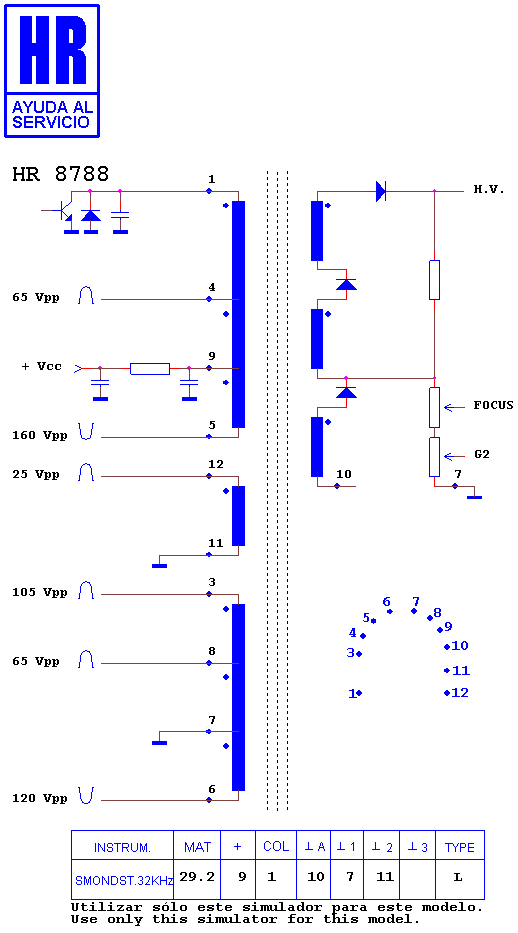

Schematic diagram for HR 8788
schematic (archived)

Manufacturer equivalents (12)

003323141 · 1372.0067 · 1372.00672 · 1372.00672 A · 1372.006720 · 1372.0067A · 1372.0067B · 200001571 · 604200001571 · HR 8788 · RO665 · TR665

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7706 · HR 46260 · HR 7190 · HR 7957 · HR 8612 · HR 8678 · HR 8580

Fitted to (14)

CNX 28 281 · CNX CHASIS PT 100 · CNX TV 70251 · ELEMIS 3070 TNZ · ELEMIS CHASIS PT 100 · ELEMIS TF 072 NPZ · ELEMIS TF 072 TNZ · ORION T 2950 · TELESTAR 2070 DH · TELESTAR CHASIS PT 100 · TELESTAR TF 072 TNZ · TELRA CHASIS PT 100 · WORTEN CHASIS PT 100 · WORTEN TS 82 PT 100
