HR 7395

type SM · family 1RP · 21.1 kV maximum anode voltage · L° deflection · 3 windings · 388 g

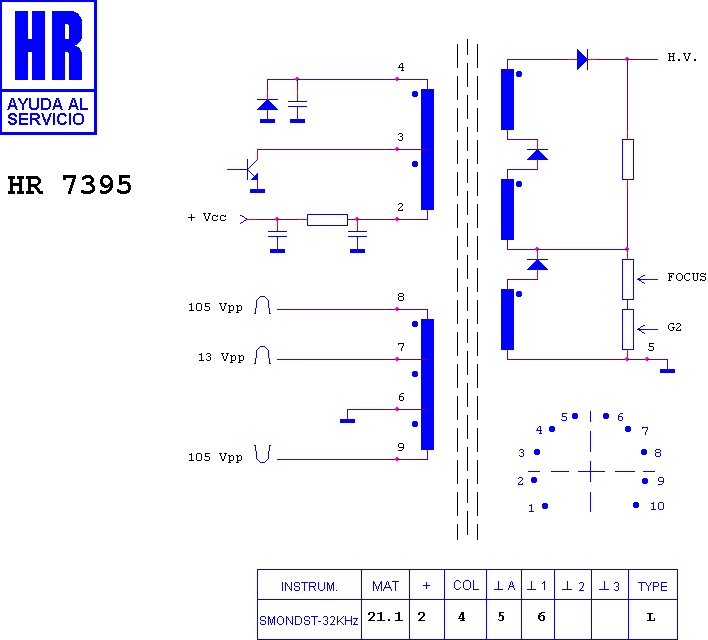

Schematic diagram for HR 7395
schematic

Manufacturer equivalents (1)

46 155 0044

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7448

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

MAGNETEK 1438-10-001 · MAGNETEK MONITOR · NCR 1438-10-001 · NCR MONITOR
