HR 7365

type SM · family 1ACP · 25.6 kV maximum anode voltage · L° deflection · 3 windings · 400 g

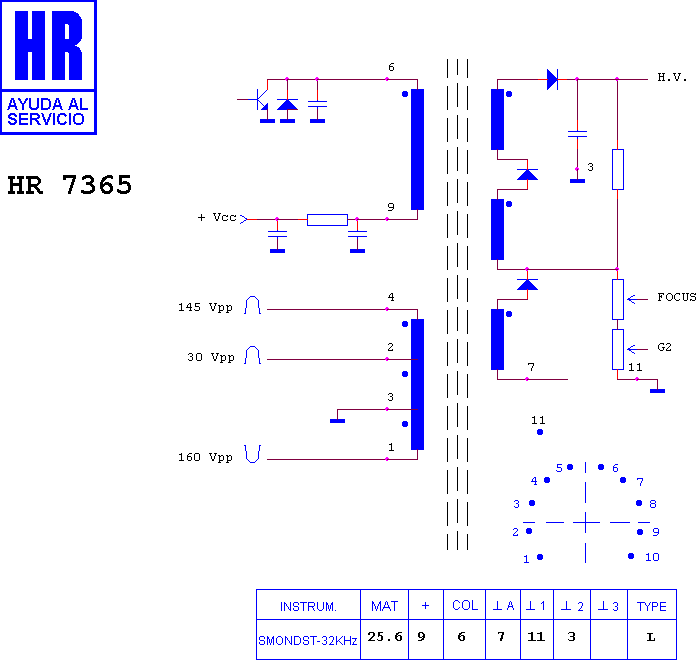

Schematic diagram for HR 7365
schematic

Manufacturer equivalents (4)

1242.0258 · 28029710 · JT 145 · JT 161

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7219 · HR 7190 · HR 8796 · HR 46187 · HR 8663 · HR 46260

Fitted to (18)

APP 1431 VGA MSA 31 · APP MONITOR · APP MSA 31 VGA · HANTAREX 1431 SVGA TS 39 · HANTAREX 1431 VGA MSA 31 · HANTAREX MONITOR · HANTAREX TECNO 1431 SVGA · OLIVETTI 14" GREEN · OLIVETTI MONITOR · SELTI MONITOR · SELTI SL 8500 · SELTI SL 85144 · SELTI SL 851442003 · SELTI SL 851442301 · VEGAS 1431 SVGA TS 39 · VEGAS 1431 VGA MSA 31 · VEGAS MONITOR · VEGAS TECNO 1431 SVGA
