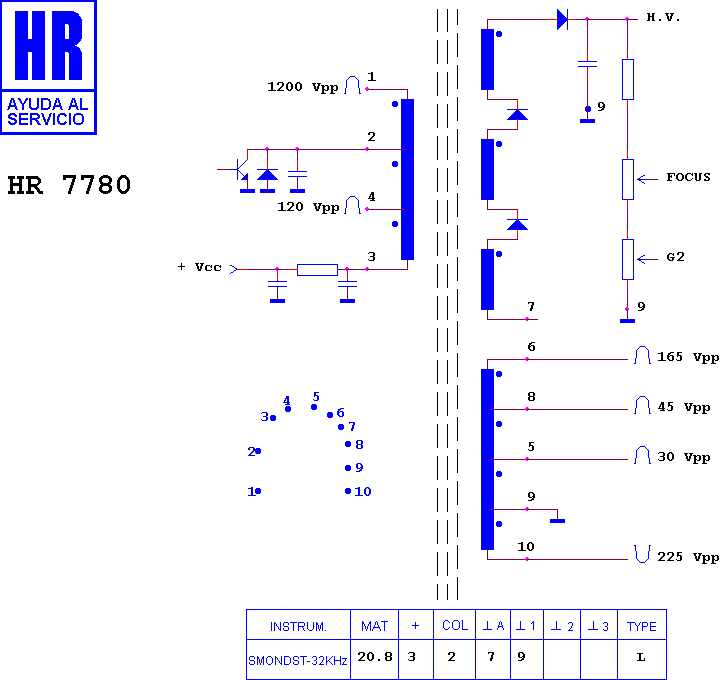

HR 7780

type SM · family 1WP1 · 20.8 kV maximum anode voltage · L° deflection · 3 windings · 444 g

Manufacturer equivalents (5)

35 L 502 AZT · 35502 A · 4992-015 · 4992-015 A · ETF 35 L 502 AZT

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7972 · HR 7370 · HR 8026 · HR 6485

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (2)

WEN JK 1463 · WEN MONITOR
