HR 8024

type ST · family 1AP1 · 31.2 kV maximum anode voltage · 110° deflection · 3 windings · 366 g

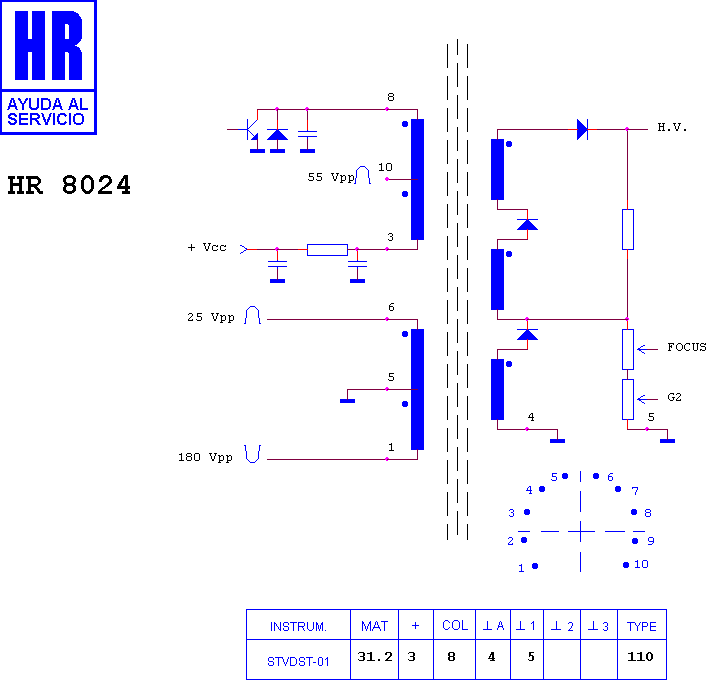

Schematic diagram for HR 8024
schematic

Manufacturer equivalents (2)

105328.20 · 40330-38

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46241 · HR 8572 · HR 46238 · HR 8530 · HR 5803 · HR 7923 · HR 6202 · HR 8311

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

EROSKI 124904 · EROSKI MEGAS · GRANDIN 70 BNT 98 · KNEISSEL 257125 · KNEISSEL KN 257125
