HR 8530

19.5 kV maximum anode voltage · 110° deflection · 3 windings · 380 g

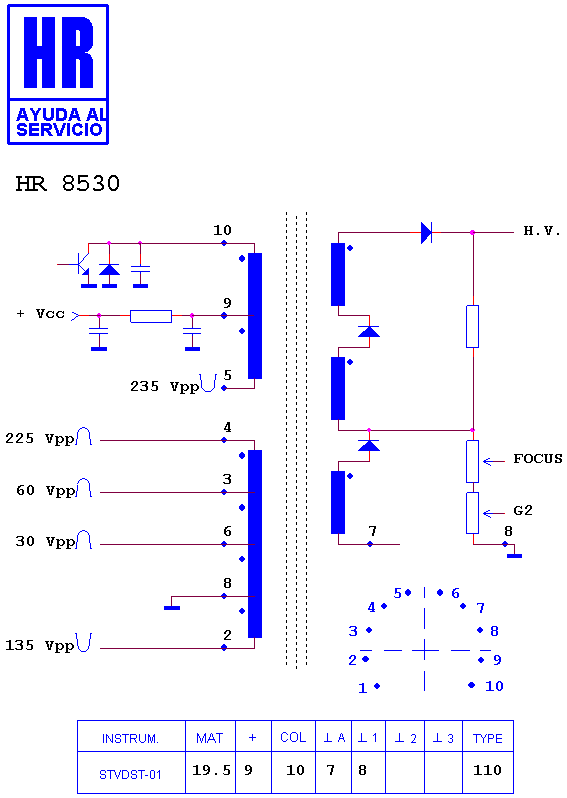

Schematic diagram for HR 8530
schematic
Schematic diagram for HR 8530
schematic (archived)

Manufacturer equivalents (1)

8530-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5805 · HR 8024 · HR 46241 · HR 7923 · HR 6202 · HR 8832 · HR 6705 · HR 8756

Fitted to (2)

GOLDI CHASIS 5 B · GOLDI CHASIS 5 C
