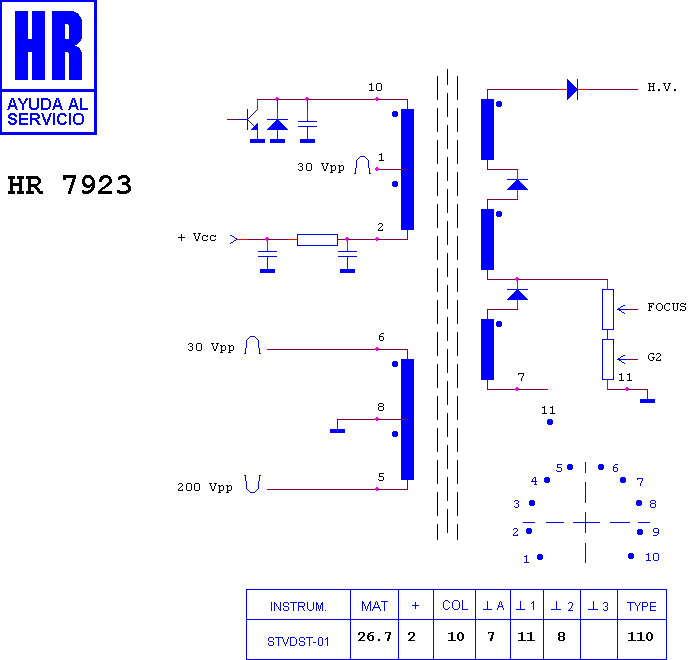

HR 7923

type ST · family 1NP1 · 26.7 kV maximum anode voltage · 110° deflection · 3 windings · 260 g

Manufacturer equivalents (2)

25186020 · HR 7923

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8311 · HR 7804 · HR 46241 · HR 8024 · HR 7342 · HR 7625 · HR 8832 · HR 8299 · HR 8530 · HR 7875 · HR 8572 · HR 7942

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (4)

MONITOR ELECTRONIC SYSTEM 14" · MONITOR ELECTRONIC SYSTEM MONITOR · PRO.EL 14" · PRO.EL MONITOR
