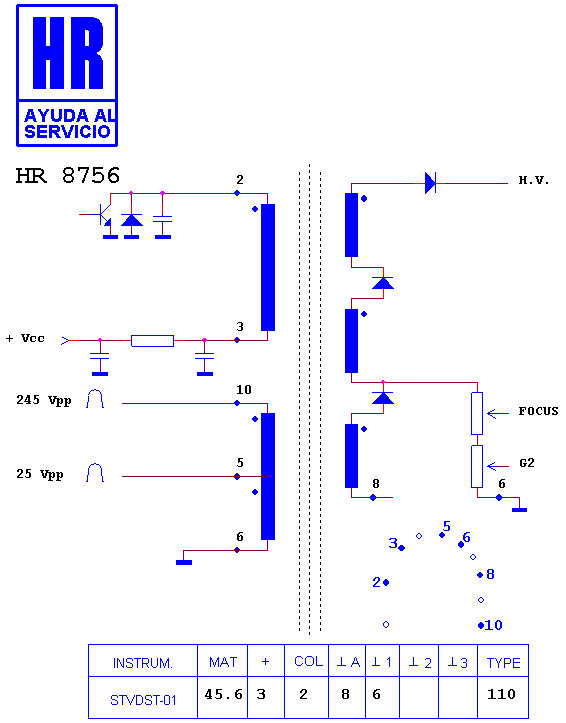

HR 8756

45.6 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

OLF04508F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Fitted to (37)

PANASONIC - MATSUSHITA AEDP 224 · PANASONIC - MATSUSHITA ALEDP 242 · PANASONIC - MATSUSHITA ALPEDP 224 · PANASONIC - MATSUSHITA AREDP 224 · PANASONIC - MATSUSHITA AREDP 242 · PANASONIC - MATSUSHITA ASEDP 224 · PANASONIC - MATSUSHITA ATEDP 224 · PANASONIC - MATSUSHITA CHASIS APED 246 P-N · PANASONIC - MATSUSHITA CHASIS NA 3 · PANASONIC - MATSUSHITA CT 27 G 31 U · PANASONIC - MATSUSHITA CT 27 S 1 · PANASONIC - MATSUSHITA CT 27 S 1 LR · PANASONIC - MATSUSHITA CT 27 S 15 R · PANASONIC - MATSUSHITA CT 27 S 18 CS · PANASONIC - MATSUSHITA CT 27 S 18 S · PANASONIC - MATSUSHITA CT 27 S 2 S · PANASONIC - MATSUSHITA CT 27 S 61 S · PANASONIC - MATSUSHITA CT 2755 SS · PANASONIC - MATSUSHITA CT 29 S 1 PS · PANASONIC - MATSUSHITA CT 29 S 1 VS · PANASONIC - MATSUSHITA CT 29 S 18 PS · PANASONIC - MATSUSHITA CT 29 S 18 VS · PANASONIC - MATSUSHITA CT 29 SILS · PANASONIC - MATSUSHITA CT 31 S 18 CS · PANASONIC - MATSUSHITA CT 31 S 61 S · PANASONIC - MATSUSHITA CT 32 G 21 U · PANASONIC - MATSUSHITA PC 29 S 15 R · PANASONIC - MATSUSHITA YAMEDP 224 · QUASAR AEDC 224 · QUASAR AEDC 242 · QUASAR ANEDC 224 · QUASAR AREDC 224 · QUASAR QC 29 S 5 J · QUASAR SP 2700 K · QUASAR SP 2705 J · QUASAR SQ 2765 J · QUASAR YAEDC 224
