HR 6202

type ST · family 1BP · 24 kV maximum anode voltage · 110° deflection · 5 windings · 407 g

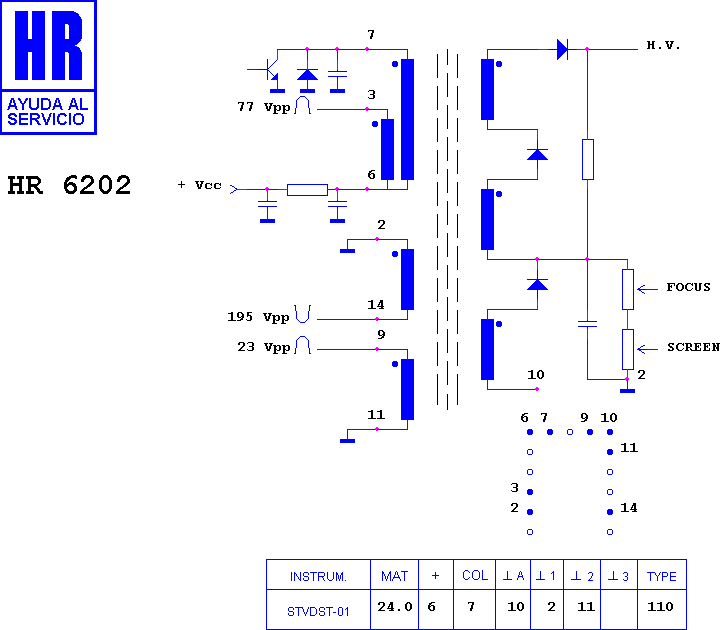

Schematic diagram for HR 6202
schematic

Manufacturer equivalents (2)

2001.0069/3 · HR 6202

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8024 · HR 46241 · HR 8572 · HR 8530 · HR 5803

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
