HR 5803

type ST · family 1CAS · 20.4 kV maximum anode voltage · 110° deflection · 5 windings · 412 g

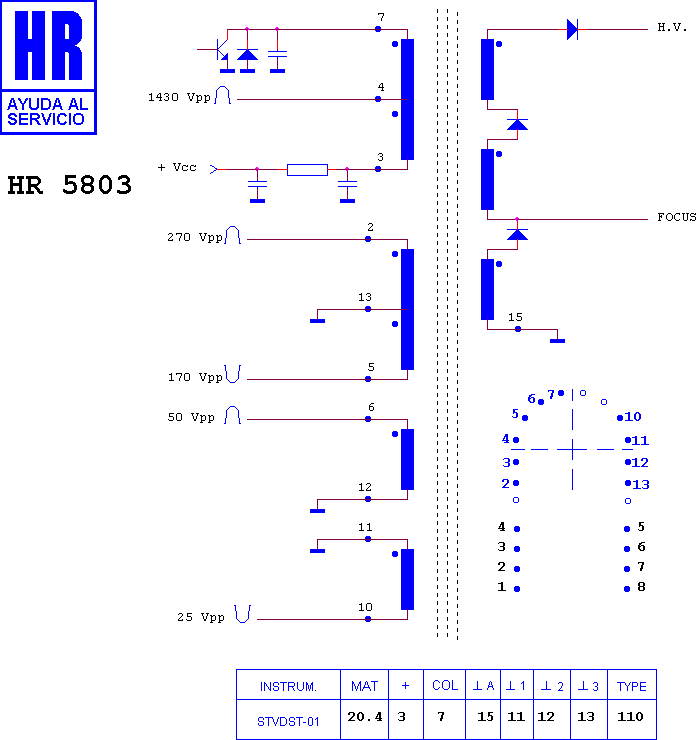

Schematic diagram for HR 5803
schematic

Manufacturer equivalents (5)

00 H 07015000 · FAT30142 · FM 0510 · FM 510 · ME/6483-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8572 · HR 7923 · HR 46241 · HR 8024 · HR 46238 · HR 7715 · HR 8741 · HR 8311 · HR 6202 · HR 7875

Fitted to (6)

HITACHI C 25 P 440 VT · HITACHI C 28 P 440 VT · KUBA ELECTRONIC 2800 · KUBA ELECTRONIC 2800 S · SALORA 20 K 70 · SALORA 28 K 70
