HR 8741

37.5 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

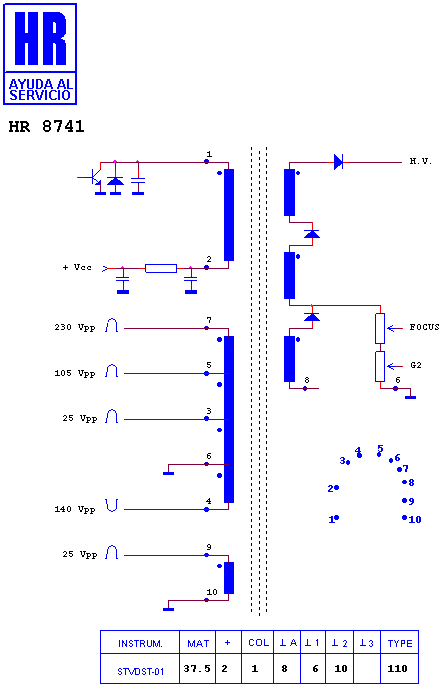

Schematic diagram for HR 8741
schematic (archived)

Manufacturer equivalents (9)

1372.0048 · 1372.00482 · 1372.00482 A · 1372.0048A · 1372.0048B · 242253102417 · 53102417 · HR 8741 · KN35027N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7715 · HR 8655 · HR 46238 · HR 8372 · HR 8594 · HR 8572 · HR 80025 · HR 8299 · HR 7875 · HR 6546 · HR 5803 · HR 8084

Fitted to (5)

PHILIPS 29 PT 5515 · PHILIPS 29 PT 5515/01 · PHILIPS A 10 SFW · PHILIPS CHASIS A 10 · PHILIPS CHASIS A 10 SFW
