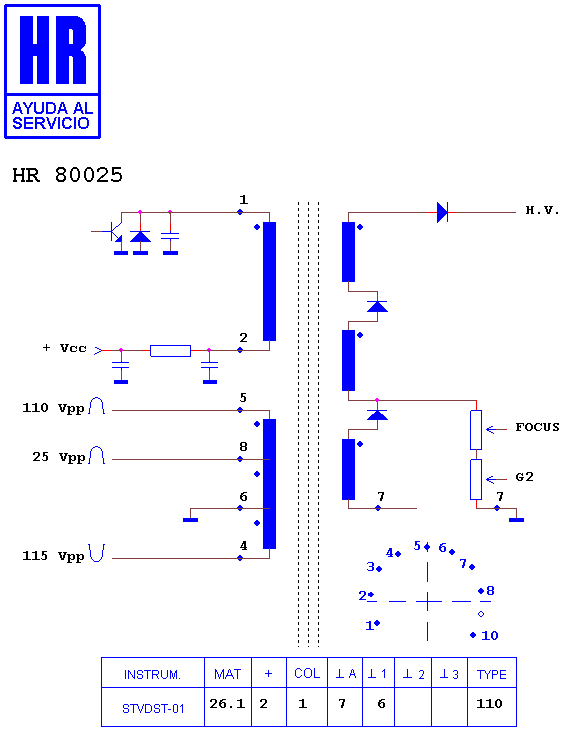

HR 80025

type ST · family 1XP1 · 26.1 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

Manufacturer equivalents (2)

FD 0185 · FD 185

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8373 · HR 7715 · HR 8372 · HR 8594 · HR 8655 · HR 8741 · HR 8084 · HR 5806 · HR 8335 · HR 8719 · HR 6546 · HR 8155

Notes

COD-030 REMOVE THE CONNECTOR AND THE G2'S CABLE OF CHASSIS AND USE THE HR'S CABLE (RED CABLE)

Fitted to (1)

SANYO 31 C 485 M
