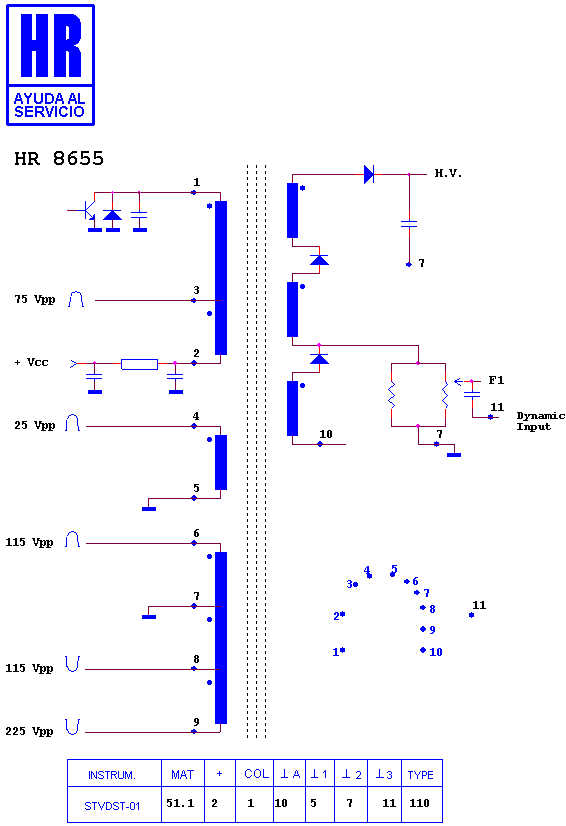

HR 8655
Manufacturer equivalents (5)
1-453-269-11 · 1-453-319-11 · 1-453-319-21 · 8-598-823-00 · NX 4511//U
Possible substitutes
Parts of a similar design. A shortlist to check, not a recommendation.
HR 8335 · HR 80025 · HR 8372 · HR 8594 · HR 8373 · HR 7715 · HR 8741 · HR 8155 · HR 8084 · HR 8719 · HR 6546 · HR 5806
Notes
COD-032 IN THE HR TRANSFORMER THE MISSED PINS ARE CONNECTED INTERNALLY. COD-036 IN THIS HR TRANSFORMER THE FOCUS 2 AND SCREEN POTENCIOMETERS ARE NOT USED.
Fitted to (16)
SONY CHASIS BE 3 D · SONY KV 28 FC 60 E · SONY KV 29 FS 60 D · SONY KV 29 FX 11 B · SONY KV 29 FX 11 D · SONY KV 29 FX 2 E · SONY KV 29 FX 60 B · SONY KV 32 WF 1 A · SONY KV 32 WF 1 B · SONY KV 32 WF 1 D · SONY KV 32 WF 1 E · SONY KV 32 WF 1 K · SONY KV 32 WF 1 U · SONY KV 32 WS 2 B · SONY KV 32 WS 2 D · SONY KV 32 WS 2 U
