HR 6546

type ST · family 1IP · 30.3 kV maximum anode voltage · 110° deflection · 4 windings · 436 g

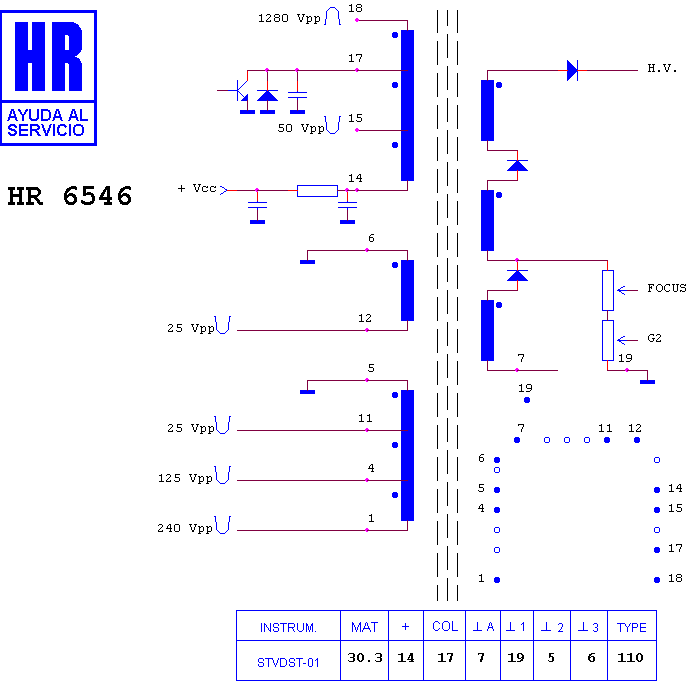

Schematic diagram for HR 6546
schematic

Manufacturer equivalents (10)

140 17028 · 14017034 · 268 30452 · 3122 268 30450 · 3122 268 30451 · 3122 268 30452 · 38321 · 38322 · 4806 140 17034 · FAT30273

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8372 · HR 8594 · HR 8655 · HR 8373 · HR 8084 · HR 7715 · HR 8741 · HR 8719 · HR 7988 · HR 46238 · HR 6694 · HR 80025

Fitted to (12)

PHILIPS 21 GR 7560 · PHILIPS 25 GR 7560 · PHILIPS 25 GR 7560/78 · PHILIPS 25 GR 7578 · PHILIPS 25 GR 7585 · PHILIPS 25 GR 7685 · PHILIPS 28 GR 7560 · PHILIPS 28 GR 7560/78 · PHILIPS 28 GR 7578 · PHILIPS 29 GR 7885 · PHILIPS CHASIS GR 1 CL · PHILIPS V 9350 BP
