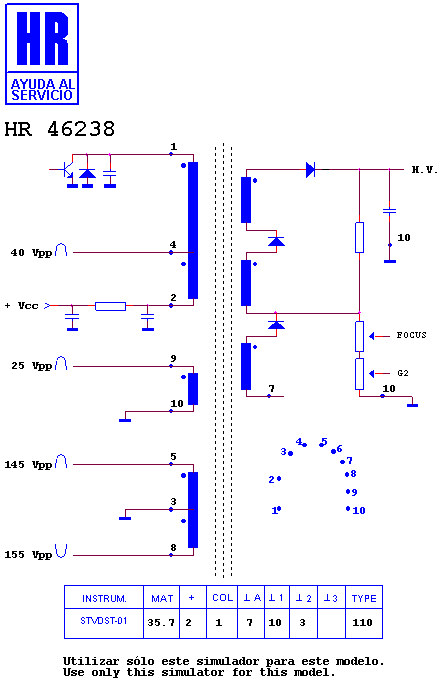

HR 46238

type ST · family 1WP1 · 35.7 kV maximum anode voltage · 110° deflection · 4 windings · 461 g

Manufacturer equivalents (5)

34000 2520 · 353025200 · 3530Z4900 · MRCFT 252 · MRCFT249

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8572 · HR 7715 · HR 8741 · HR 7804 · HR 5803 · HR 8024 · HR 7875 · HR 6546

Fitted to (5)

CHUN PENG CP 808 · CHUN PENG MONITOR · CHUN PENG VT 2040 F · NEOTEC MONITOR · NEOTEC NT 2701
