HR 7715

type ST · family 1XP1 · 41.4 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

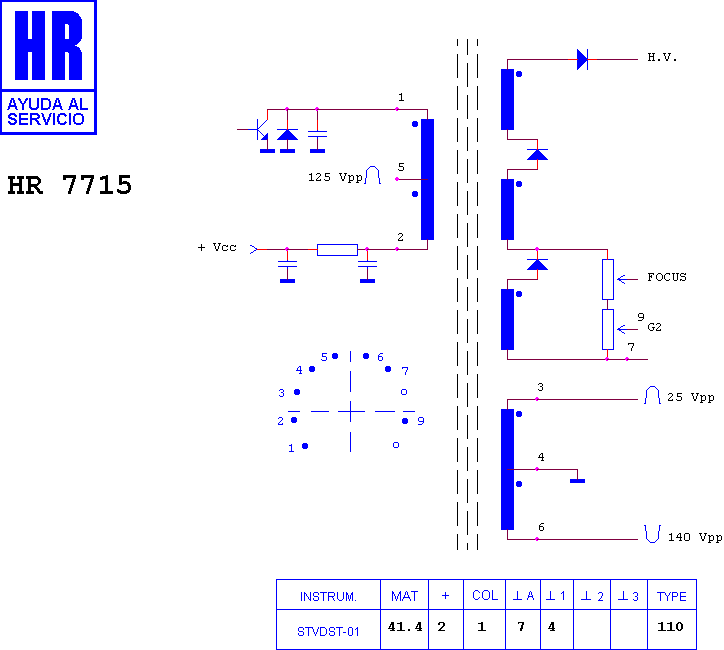

Schematic diagram for HR 7715
schematic

Manufacturer equivalents (3)

610 018 0055 · FD 0132 · FD 132

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8655 · HR 8741 · HR 46238 · HR 8372 · HR 8594 · HR 8572 · HR 80025 · HR 8299 · HR 7875 · HR 6546 · HR 5803 · HR 8084

Fitted to (2)

SANYO CEM 1447 · SANYO CEM 1747
