HR 8084

36 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

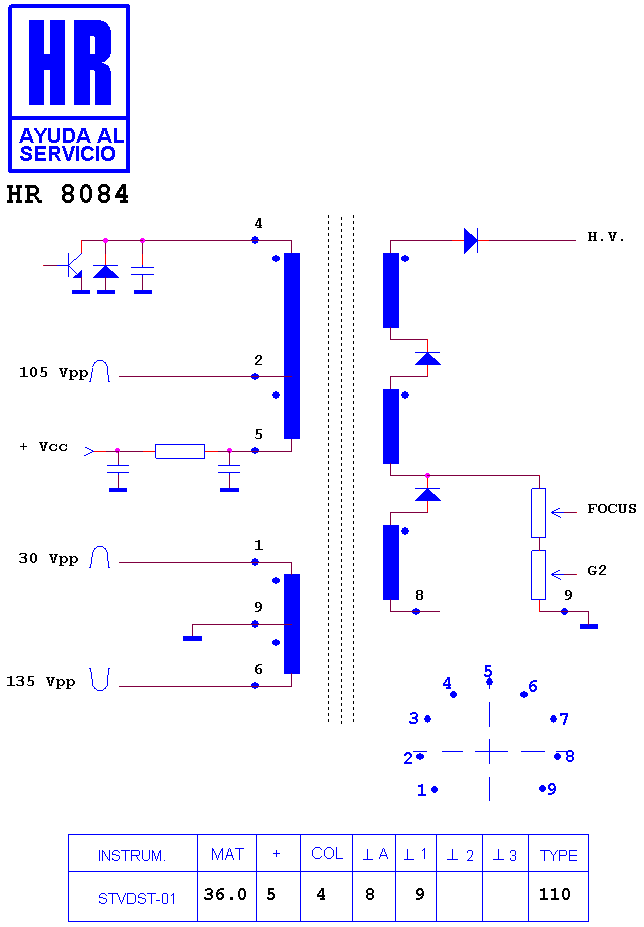

Schematic diagram for HR 8084
schematic (archived)

Manufacturer equivalents (8)

905263 · BSC35-02 · FAT30165 · HR 8084 · KF7476C · KN30165 · TLF14653F · TR1162

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8299 · HR 8655 · HR 8719 · HR 7715 · HR 8741 · HR 80025 · HR 8372 · HR 8594 · HR 6546 · HR 5806 · HR 7875 · HR 6166

Fitted to (7)

COC TEC 7700 · CONCORD CA 107 · CONDOR 107 · CONDOR CA 107 · PEONY TC 483 P · TOMITA TC 371 B/G · TOMITA TC 371 BG
