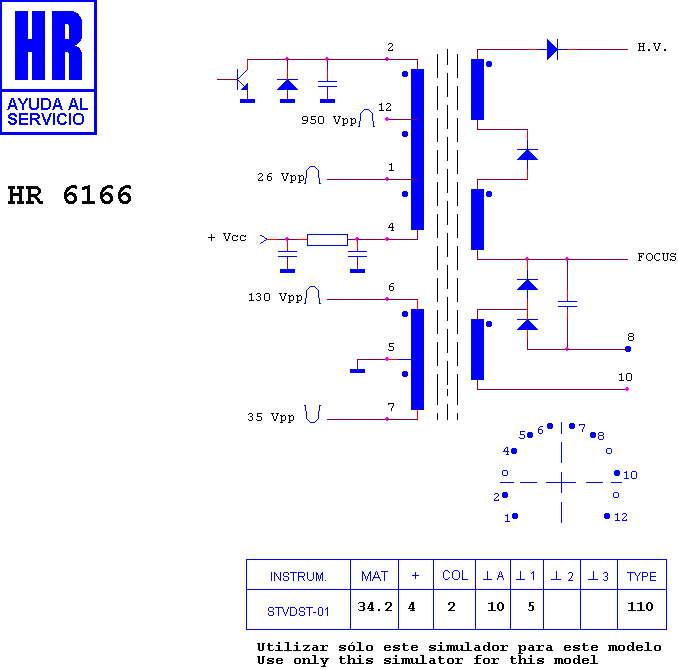

HR 6166

type ST · family 1BS · 34.2 kV maximum anode voltage · 110° deflection · 2 windings · 363 g

Manufacturer equivalents (1)

F 1166

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8719 · HR 7624 · HR 7544 · HR 8372 · HR 8084 · HR 8655 · HR 7713 · HR 8594 · HR 8299 · HR 7980 · HR 5806 · HR 6491

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
