HR 6491

type ST · family 1BP1 · 25.2 kV maximum anode voltage · 110° deflection · 4 windings · 356 g

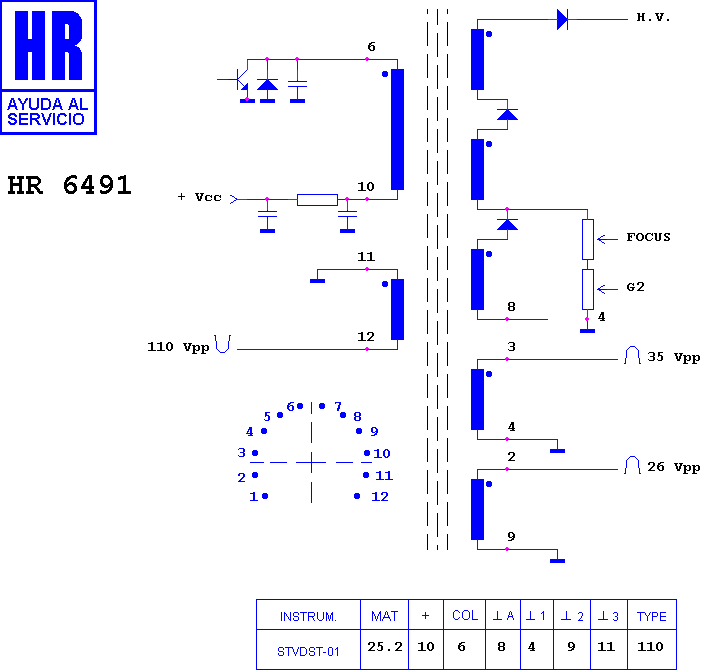

Schematic diagram for HR 6491
schematic

Manufacturer equivalents (5)

2432471 · 2432871 · J2432871 · L380065 · Y2432871

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7980 · HR 6166 · HR 7359 · HR 8335 · HR 5806 · HR 7516 · HR 7713

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
