HR 8719

36 kV maximum anode voltage · 110° deflection · 4 windings · 270 g

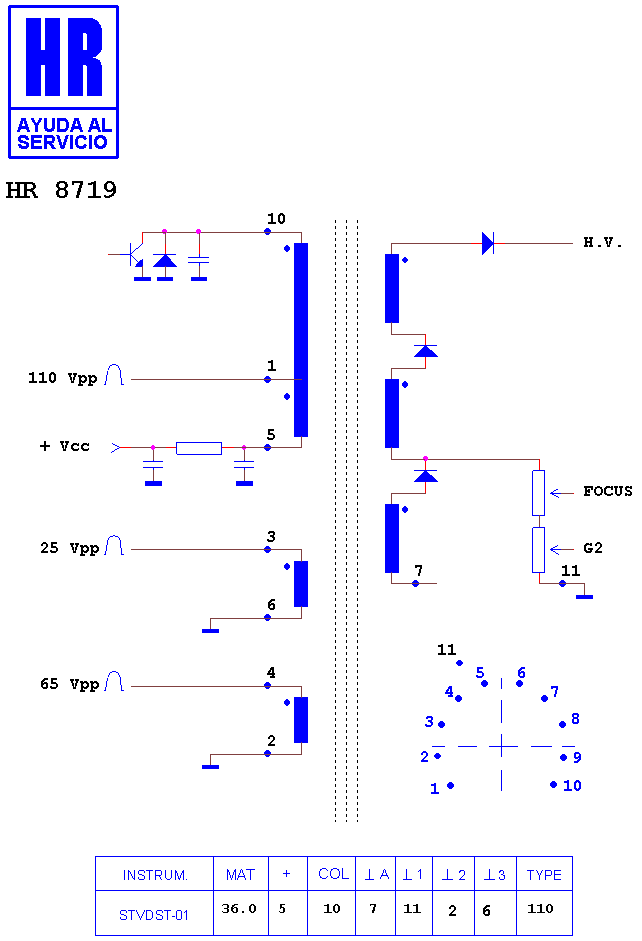

Schematic diagram for HR 8719 — schematic (archived)

Manufacturer equivalents (1)

1142.0535

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8084 · HR 8655 · HR 7988 · HR 6694 · HR 8335 · HR 80025 · HR 8372 · HR 8594 · HR 5806 · HR 6546 · HR 6166 · HR 8373
