HR 8373

type ST · family 1VP · 31.8 kV maximum anode voltage · 110° deflection · 4 windings · 374 g

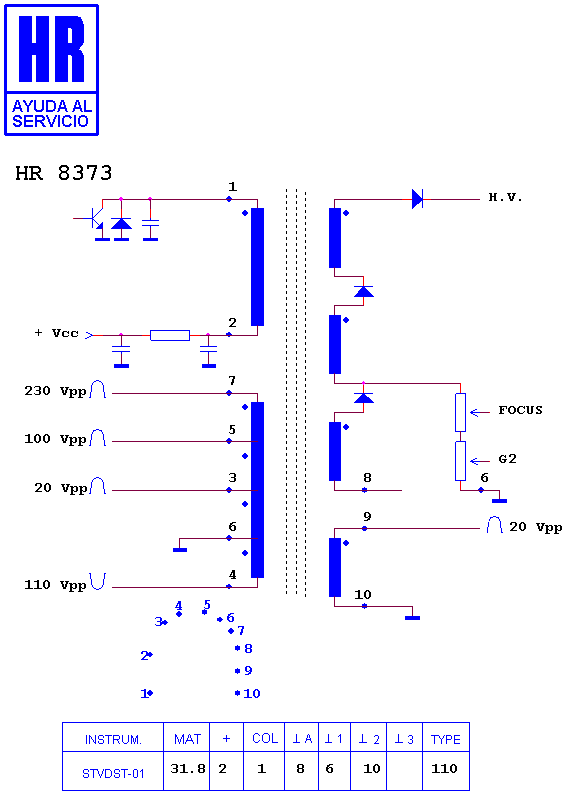

Schematic diagram for HR 8373
schematic

Manufacturer equivalents (20)

1362.0003 · 1362.0003 B · 1362.0003A · 1362.0004 · 1362.0004 A · 1362.0004 B · 1362.0004C · 1362.0004S · 140 17091 · 2422 531 98025 · 2422 531 98026 · 242253102556 · 4806 140 17091 · 531 98025 · 531 98026 · 53102556 · 546610270K · FAT30799 · FAT30823 · HR 8373

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8372 · HR 8594 · HR 8655 · HR 80025 · HR 8084 · HR 8719 · HR 7988 · HR 6546

Fitted to (8)

PHILIPS 28 PW 6305/01 · PHILIPS 28 PW 6515/01 · PHILIPS 28 PW 6515/05 · PHILIPS 28 PW 6816/01 · PHILIPS 32 PW 6005 · PHILIPS 32 PW 6005/01 · PHILIPS 32 PW 6305/01 · PHILIPS 32 PW 6515/01
