HR 8343

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

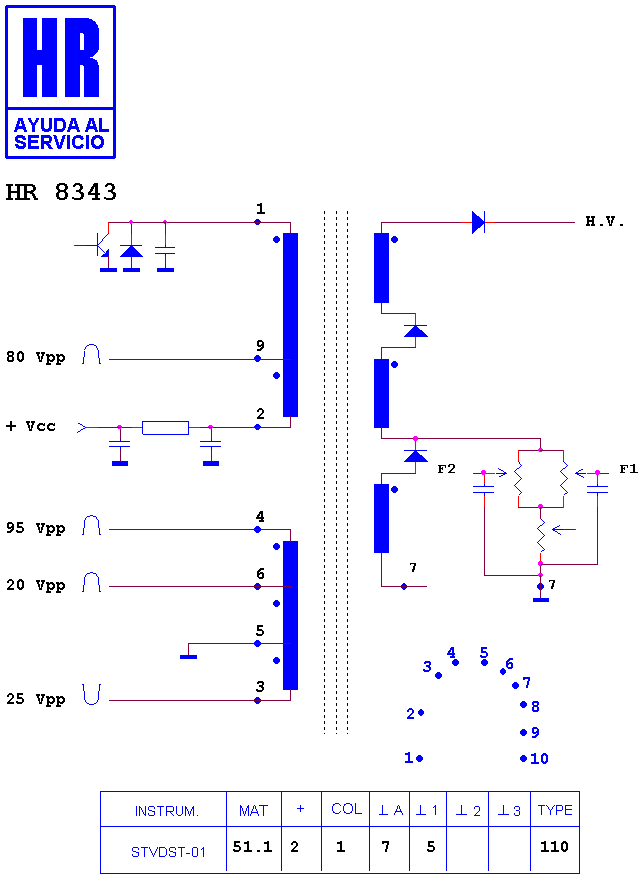

Schematic diagram for HR 8343
schematic (archived)

Manufacturer equivalents (8)

20010327Z1 · A-T9XX0065F-R · BSC29-01B11 · BSC29-01B56 · BSC29-01BS6 · BSC29-01N4013H · JF0101-01804 · JF0101-0814

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8335 · HR 6694

Fitted to (10)

HSN TC 2910 G · HSN TC 2961 A · HSN TC 2988 · HSN TF 2902 G · HSN TF 2988 · HSN TF 2988 C · HSN TF 2988 C-D · HSN TF 2988 D · HSN TF 2988 G · HSN TF 2998 DL

Search this part in the full database
