HR 8797

27.4 kV maximum anode voltage · L° deflection · 3 windings · 434 g

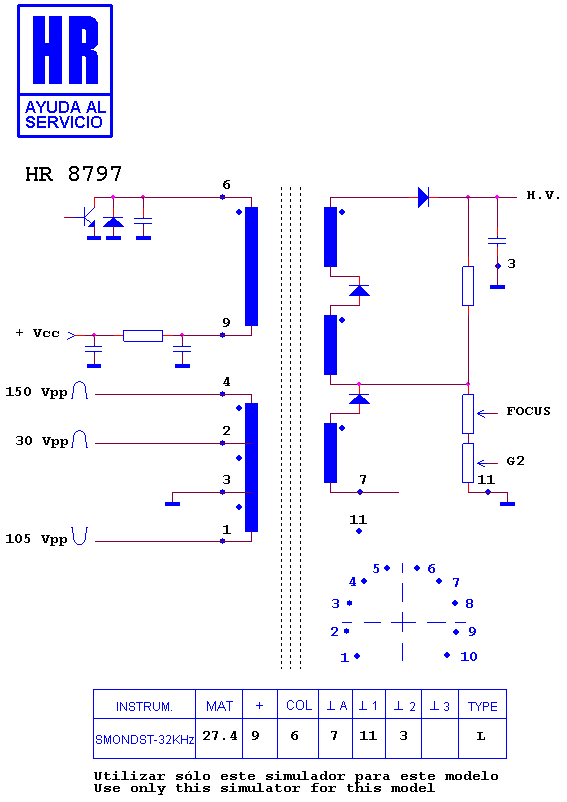

Schematic diagram for HR 8797
schematic (archived)

Manufacturer equivalents (4)

1242.0268 · 28029620 · 2802962023793 · MAT33319

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7988 · HR 46180 · HR 46213

Fitted to (12)

COMPAQ 425 SVG · COMPAQ 425 SVG · COMPAQ 425 SVGA · COMPAQ 425 SVGA · COMPAQ MONITOR · COMPAQ MONITOR · COMPAQ MONITOR · COMPAQ MONITOR PRESARIO · COMPAQ MONITOR PRESARIO · COMPAQ PRESARIO 425SVG · SELTI MONITOR · SELTI SL 851442009
