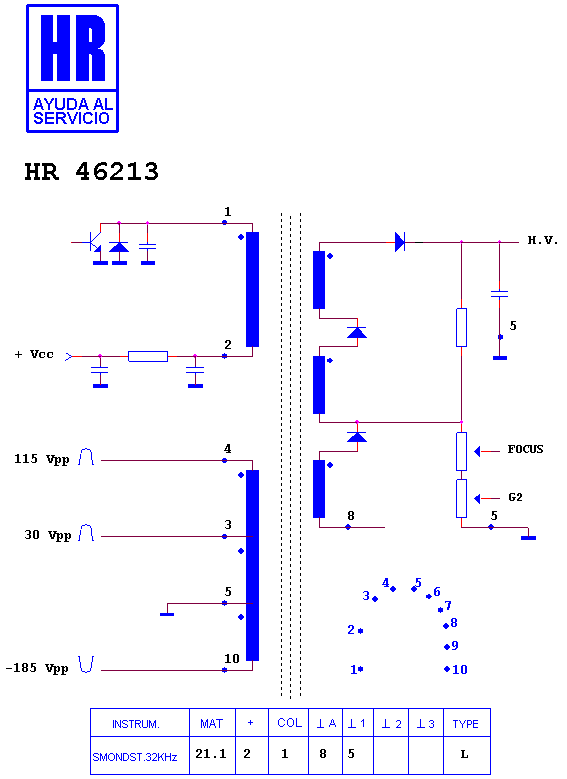

HR 46213
Manufacturer equivalents (3)
DNF-FN 1530 · FN 1530 · KFS 61485
Possible substitutes
Parts of a similar design. A shortlist to check, not a recommendation.
HR 8155 · HR 46180 · HR 8797 · HR 7544
Notes
COD-025 THE SCREEN CABLE OF HR TRANSFORMER MUST BE SOLDERED DIRECTLY TO THE P.C. BOARD COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
Fitted to (18)
DUGO MONITOR · DUGO ZCM 1520 · HYUNDAI 5854 · HYUNDAI H 15854 B · HYUNDAI HL 5854 · HYUNDAI HL 5854 B · HYUNDAI MONITOR · OLIVETTI CDU 1554 HY 01 · OLIVETTI DSM 70-500 · OLIVETTI DSM 70-520 · OLIVETTI MONITOR · PACIFIC 4019 · PACIFIC MONITOR · ZENITH MONITOR · ZENITH ZCM 1520 · ZENITH ZCM 1520 H 2 · ZENITH ZCM 1520 H 2-00 · ZENITH ZCM 1520 H 200
