HR 8279

type ST · family 1VP · 20.1 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

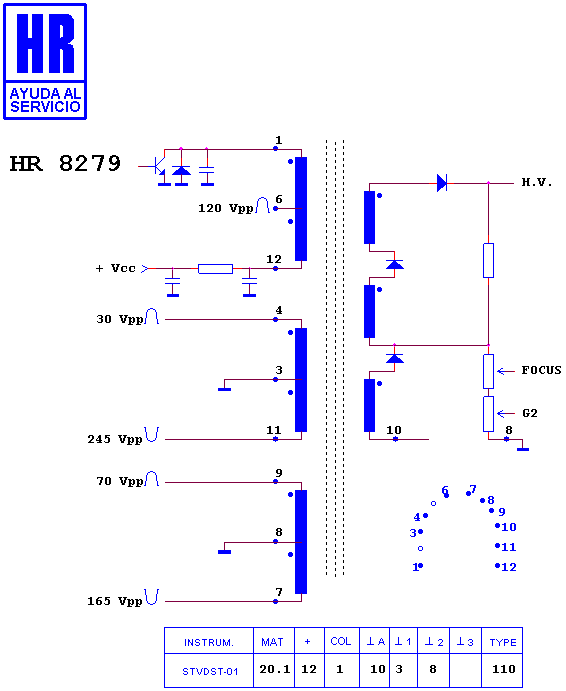

Schematic diagram for HR 8279
schematic

Manufacturer equivalents (5)

1352.5047 · 1352.5047A · DS 34 · FAT30796 · HR 8279

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6179 · HR 8875 · HR 6115 · HR 6516 · HR 8935 · HR 8778 · HR 8675 · HR 7818 · HR 6142 · HR 8151 · HR 7706 · HR 8676
