HR 8210

type ST · family 1YP · 30.8 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

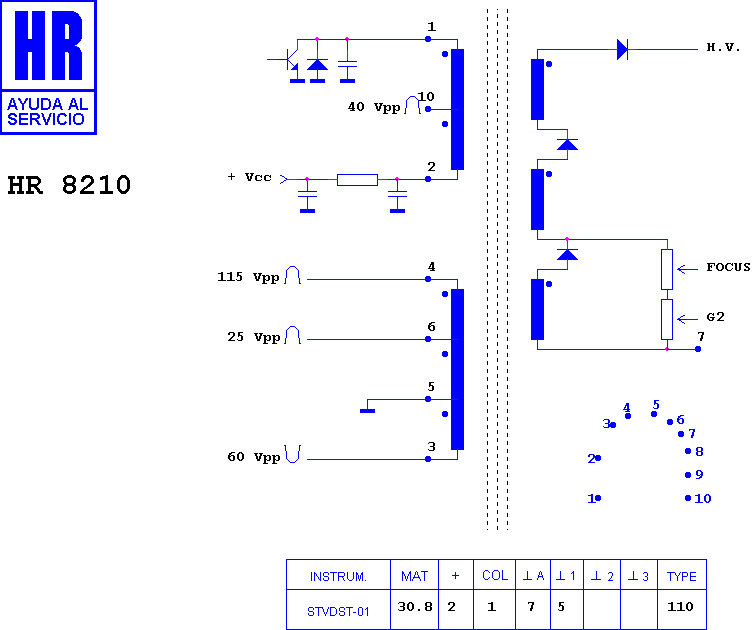

Schematic diagram for HR 8210
schematic

Manufacturer equivalents (14)

1AV4L40B05900 · 1AV4L40B07700 · 1LB4L40B05900 · 6450142994 · 6450174230 · 6450212741 · 6450279317 · BSC24-2658S · FSM28A001 · L 40 B 05610 · L40B05600 · L40B05900 · L40B07700 · L40B5900

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8370 · HR 8615 · HR 8407 · HR 80317 · HR 8521 · HR 80053 · HR 7340 · HR 8089 · HR 6225

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (11)

SANYO 28 MT 2 · SANYO 28 S 2 · SANYO C 28 EH 75 · SANYO C 28 EH 75-01 · SANYO C 28 EH 85 · SANYO C 28 EH 85 N 00 · SANYO C 28 EH 85-00 · SANYO C 28 ER 14 · SANYO C 28 ER 55 · SANYO C 28 ER 55 N · SANYO CE 2812 C
