HR 7340

type ST · family 1AP1 · 27.9 kV maximum anode voltage · 110° deflection · 3 windings · 330 g

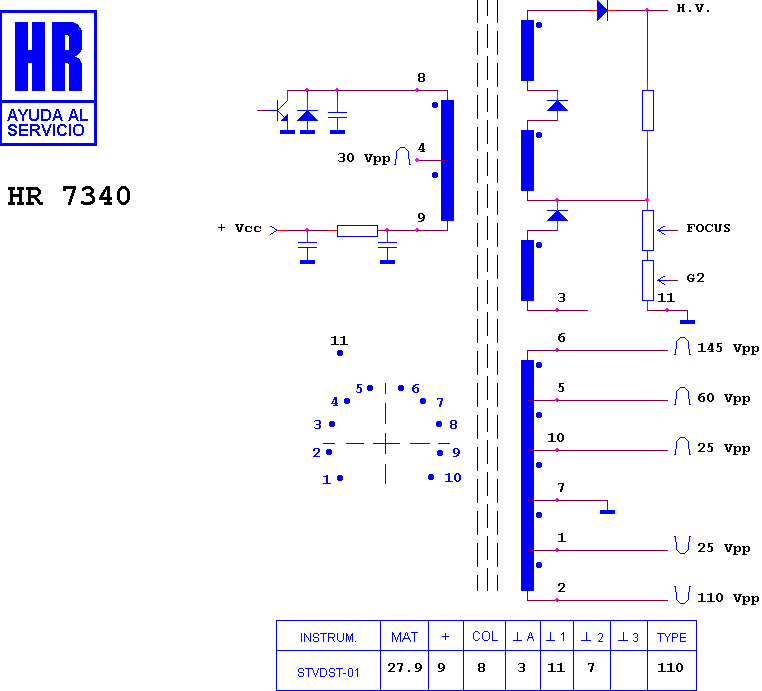

Schematic diagram for HR 7340
schematic

Manufacturer equivalents (18)

104106.50 · 104106.F0 · 104106F0.P1 · 105327.90 · 1192.1077 · 1192.1077B · 1362.3028 · 40330-28 · CTRNF2035BMVO · F 2035 BM · F 2042 BM · F2035BMZZ · FAT30482 · HR 7340 · KN30482 · RTRNF2035BMVO · RTRNF2035BMZZ · RTRNF2042BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8210 · HR 8615 · HR 8370 · HR 8407

Fitted to (21)

SHARP 51 CS 03 H · SHARP 59 CS 03 H · SHARP 59 CS 05 H · SHARP 63 CS · SHARP 63 CS 03 S · SHARP 63 CS 05 S · SHARP 63 CS 05 SN · SHARP 63 CS 055 · SHARP 63 CS 055 N · SHARP 63 CS 06 S · SHARP 66 CS 03 H · SHARP 66 CS 05 H · SHARP 70 CS 03 · SHARP 70 CS 03 S · SHARP 70 CS 05 S · SHARP 70 CS 055 · SHARP 70 CS 06 S · SHARP 70 CS 06 SN · SHARP 70 CS 065 N · SHARP 72 CS 03 S · SHARP CHASIS CS

Search this part in the full database
