HR 7490

type ST · family 1XP1 · 90° deflection · 3 windings · 290 g

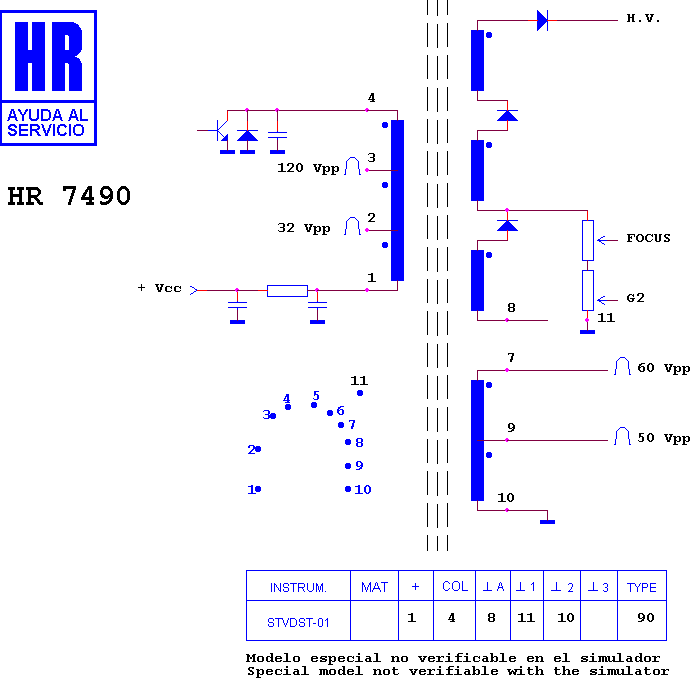

Schematic diagram for HR 7490
schematic

Manufacturer equivalents (2)

5 F 13064 B 1 · MSH-1FBW24A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6490 · HR 8105 · HR 7257 · HR 8490
