HR 7688

type ST · family 1XP1 · 19 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

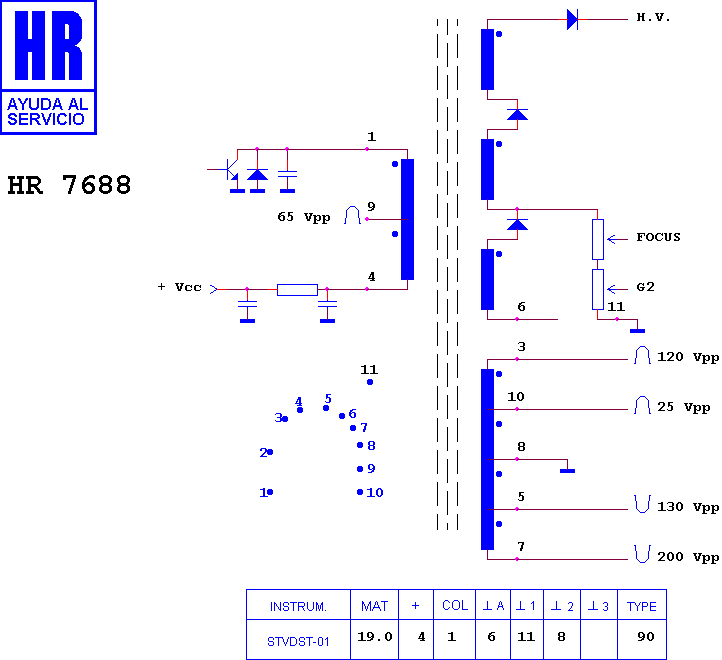

Schematic diagram for HR 7688
schematic

Manufacturer equivalents (3)

FAT30187 · RO 051 · RO 51

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7736 · HR 8479 · HR 7158 · HR 7083 · HR 6610 · HR 7384 · HR 7243 · HR 80131 · HR 7407 · HR 8272 · HR 7729 · HR 7601

Fitted to (2)

ELTA 2030 · SONIKO STV 3600 PS
