HR 7157

type ST · family 1AP2 · 22.1 kV maximum anode voltage · 90° deflection · 4 windings · 324 g

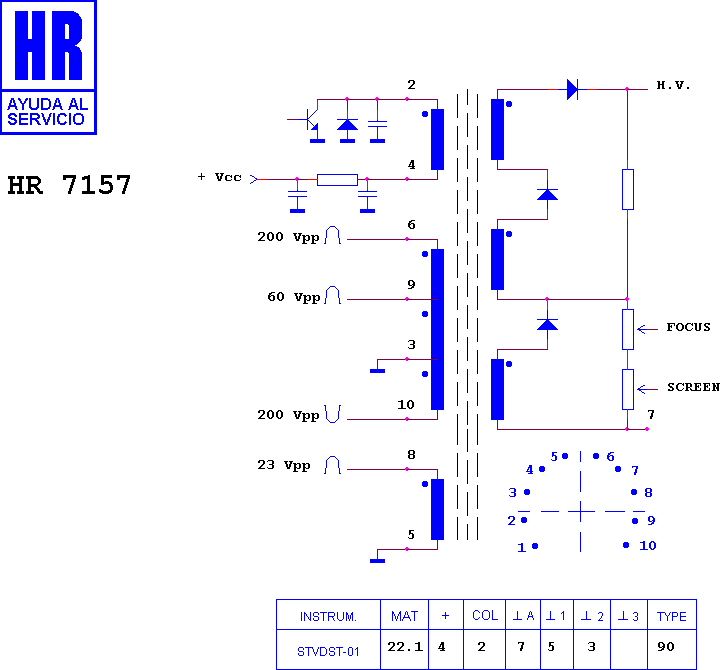

Schematic diagram for HR 7157
schematic

Manufacturer equivalents (5)

094-01054/0.6 · 1352.3024 · 1352.3024A · 94-01054/0.6 · HR 7157

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7133 · HR 7529 · HR 7097 · HR 7213 · HR 6286 · HR 7186 · HR 7185 · HR 8021 · HR 7241 · HR 8041 · HR 6394 · HR 7616

Fitted to (3)

SANYO CEP 2194 · SANYO CEP 2194 TXT · SANYO CHASIS E 8 90§
