HR 7096

type ST · family 1NP1 · 20.7 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

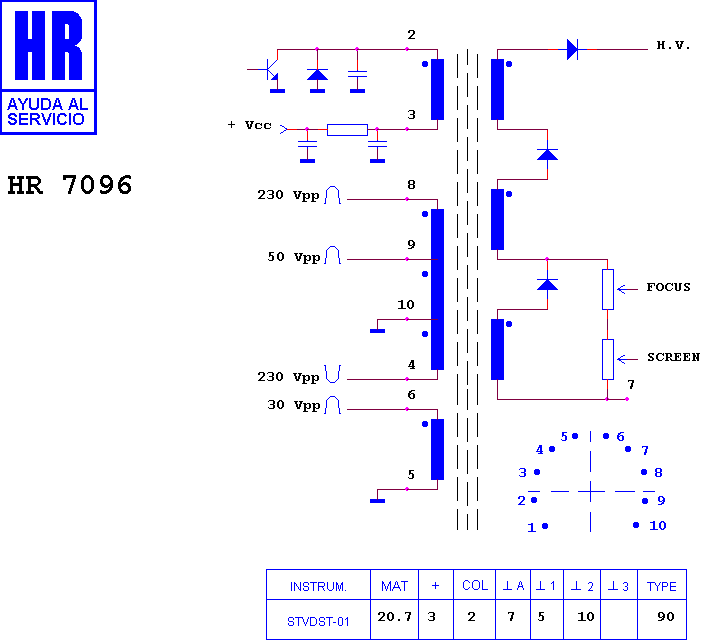

Schematic diagram for HR 7096
schematic

Manufacturer equivalents (2)

HR 7096 · HR 7096-1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7784 · HR 7051 · HR 8021 · HR 6286 · HR 8341 · HR 7186 · HR 7157 · HR 8537 · HR 7841 · HR 7004 · HR 7529 · HR 7397

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
