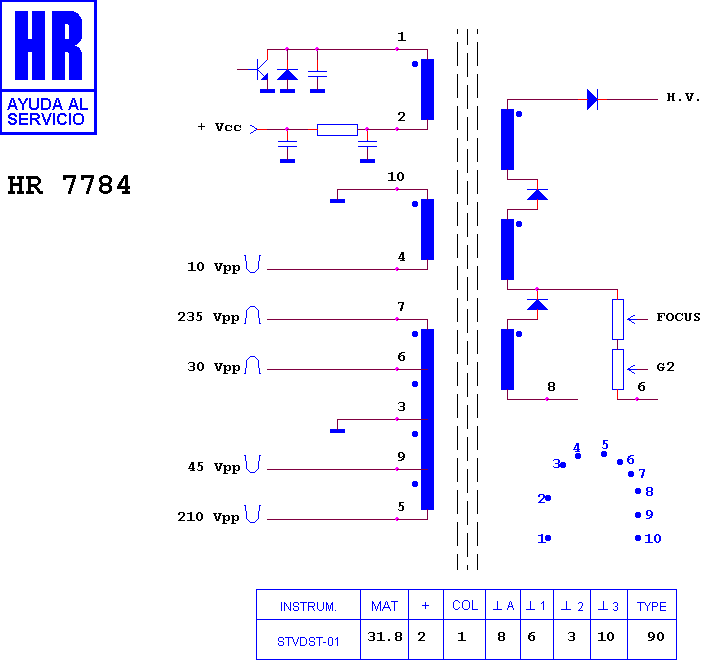

HR 7784

type ST · family 1YP · 31.8 kV maximum anode voltage · 90° deflection · 4 windings · 376 g

Manufacturer equivalents (2)

TLF 15519 F · TLF 15519 F1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7643 · HR 6231 · HR 7096 · HR 7186 · HR 7587 · HR 6286 · HR 6106 · HR 8537 · HR 7004 · HR 7529 · HR 7110 · HR 7104

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
