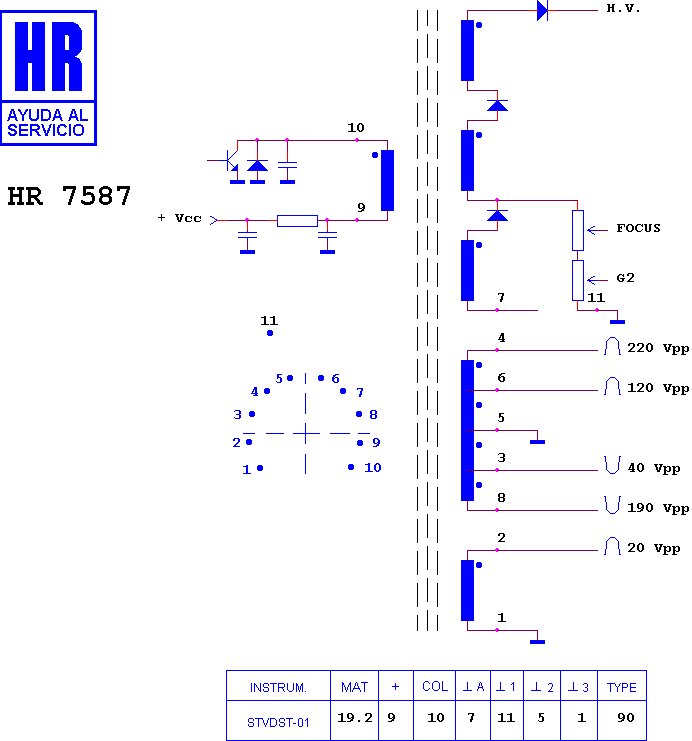

HR 7587

type ST · family 1NP · 19.2 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

Manufacturer equivalents (7)

1142.0255 · 28024720 · 28027750 · FAT 30477 · FAT 30485 · KN 30485 · ME/6344-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7643 · HR 8122 · HR 7784 · HR 7594 · HR 6231 · HR 7203 · HR 7557 · HR 8537 · HR 6505 · HR 6128 · HR 7397 · HR 8690

Fitted to (1)

SAMBER'S / NUOVA SAMBER'S 90§
