HR 7110

type ST · family 1AP1 · 20.4 kV maximum anode voltage · 90° deflection · 4 windings · 338 g

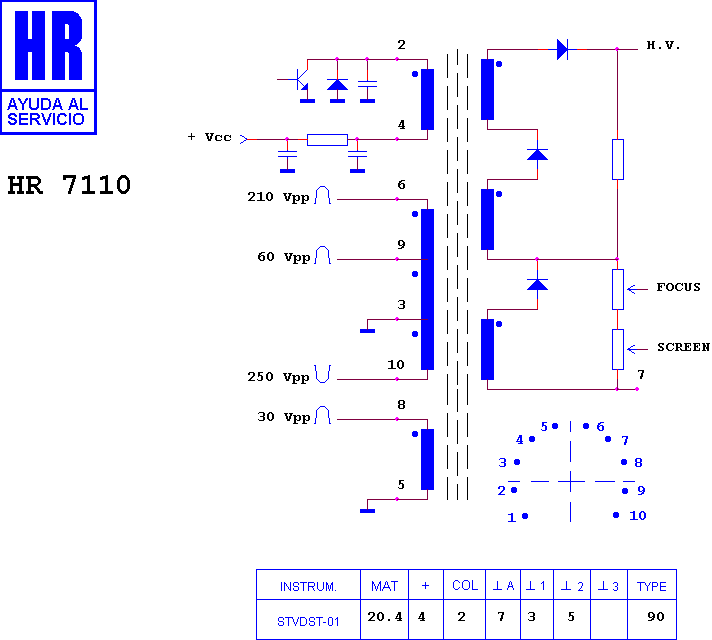

Schematic diagram for HR 7110
schematic

Manufacturer equivalents (3)

094-01029/0.8 · 32331.00 · 94-01029/0.8

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7529 · HR 7004 · HR 8341 · HR 6506 · HR 7051 · HR 6512 · HR 7241 · HR 8021 · HR 6125 · HR 7160 · HR 7096 · HR 7186

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

FISHER FTMC 36 · SANYO CEP 3091

Search this part in the full database
