HR 6125

type ST · family 1BP1 · 20.4 kV maximum anode voltage · 90° deflection · 4 windings · 370 g

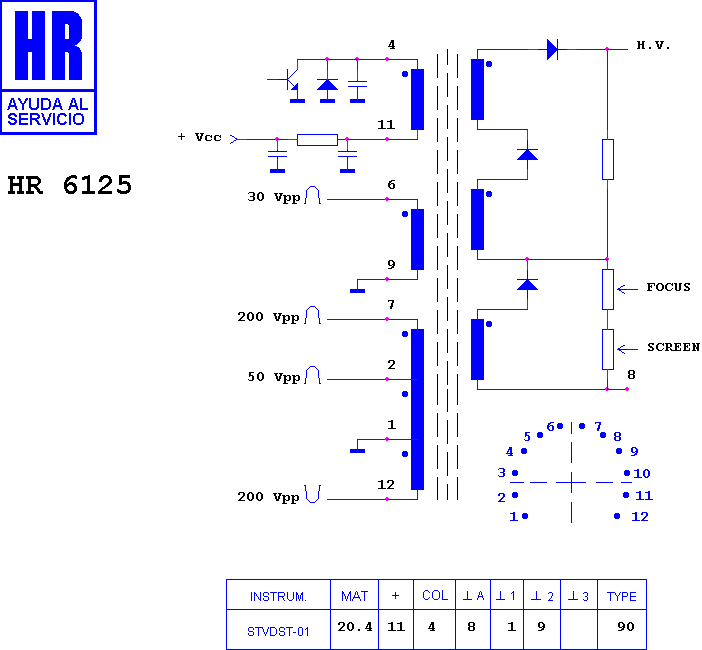

Schematic diagram for HR 6125
schematic

Manufacturer equivalents (3)

094-01025/0.2 · 37369.00 · 94-01025/0.2

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8021 · HR 7175 · HR 7241 · HR 7110 · HR 7051 · HR 7109 · HR 7096 · HR 7566 · HR 6047

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SANYO TVC 1021

Search this part in the full database
