HR 6047

19 kV maximum anode voltage · 90° deflection · 4 windings · 420 g

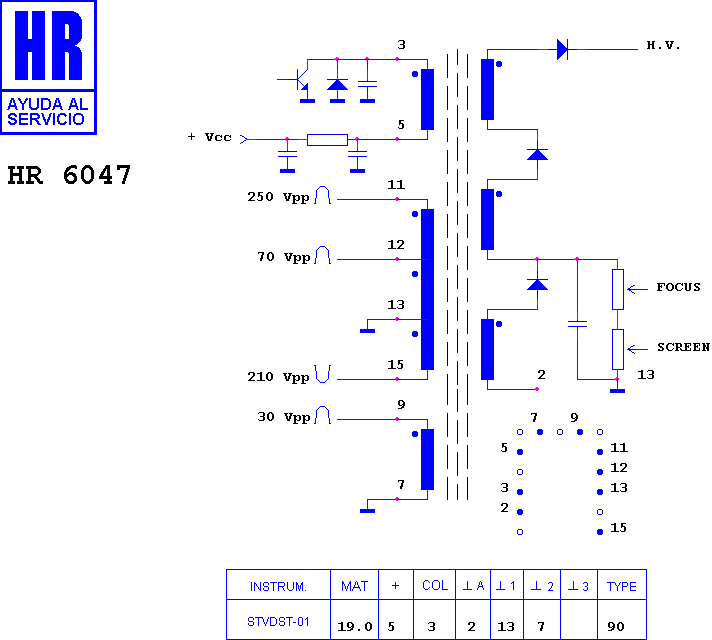

Schematic diagram for HR 6047 — schematic

Schematic diagram for HR 6047 — schematic (archived)

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7241 · HR 8021 · HR 7038 · HR 7186 · HR 5710 · HR 6286 · HR 5720 · HR 8041 · HR 7051 · HR 7472 · HR 6125 · HR 6521
