HR 6286

type ST · family 1BP1 · 23.7 kV maximum anode voltage · 90° deflection · 6 windings · 390 g

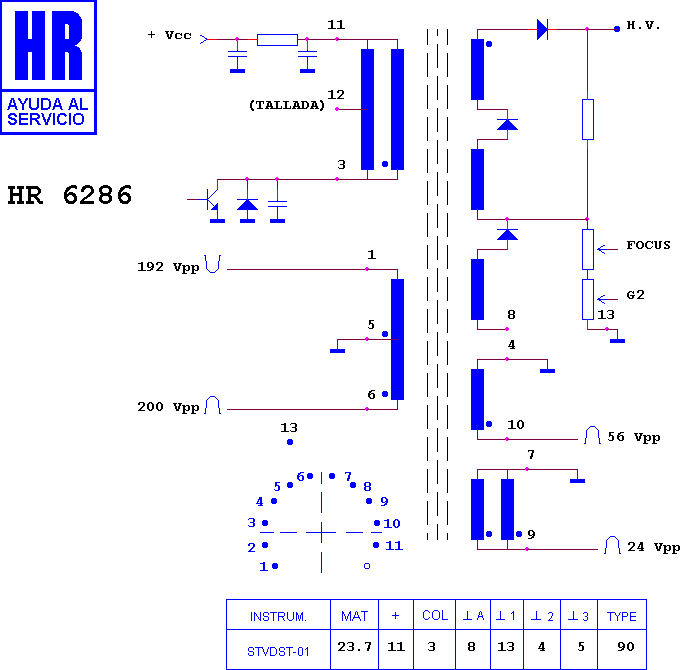

Schematic diagram for HR 6286
schematic

Manufacturer equivalents (5)

094-01064/0.4 · 094-01064/1.2 · 94-01064/0.4 · 94-01064/1.2 · HR 6286-01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7185 · HR 8448 · HR 7784 · HR 8021 · HR 7186 · HR 7213 · HR 7157 · HR 7241 · HR 7529 · HR 8041 · HR 7133 · HR 7097

Fitted to (3)

SANYO CHASIS 2087 · SANYO CHASIS EC 1 · SANYO CHASIS EC 1 110§ TUBO VIDEOCOL
